S30 Precision Infrared Digital Multimeter

S30 Precision Infrared Digital Multimeter

• Bside S30 Digital Multimeter

  Black

  A universal measuring device that can be used to measure minimum DC and AC voltages as well as frequency, resistance, capacitance, continuity and diode parameters.

  Due to its ability to accurately measure a wide range of electrical parameters and equipped with many useful functions, this universal multimeter can be used in many fields such as electronics, electrical engineering, diagnostics, maintenance, etc.

  The device can be powered in two ways:

  Lithium-ion battery 1100mAh 3.7V

  Two AAA alkaline batteries

  It has a backlit screen and a housing made of durable material

• A series of measurement functions

  The universal Bside S3 multimeter is equipped with many functions, making it an extremely useful device in diagnostic work.

  Bside S30 features:

  1. DC voltage measurement

  2. AC voltage measurement

  3. DC current measurement

  4. AC measurement

  5. Resistance up to 9.99M Ω

  6. Capacity up to 9999 μ F

  7. Frequency range: 10Hz to 99.9Hz

  8. Diode testing within a range of up to 15V

  9. Use infrared to measure temperature

  10. Automatic measurement of voltage, resistance, continuity, and frequency

  11. Automatic shutdown after 5 minutes

  12. Buzzer

  13. Backlit LCD screen

• Two power supply methods

  There are two power supply options for S30 universal measuring equipment:

  1. Equipped with a built-in lithium-ion battery with a capacity of 1100mAh and 3.7V, there is no need for an external power supply. Use USB-C cable to charge the battery.

  2. Two AAA alkaline batteries

  Firstly, the device uses a lithium battery, and if the battery runs out, it will automatically switch to an AAA battery.

  Exhibition

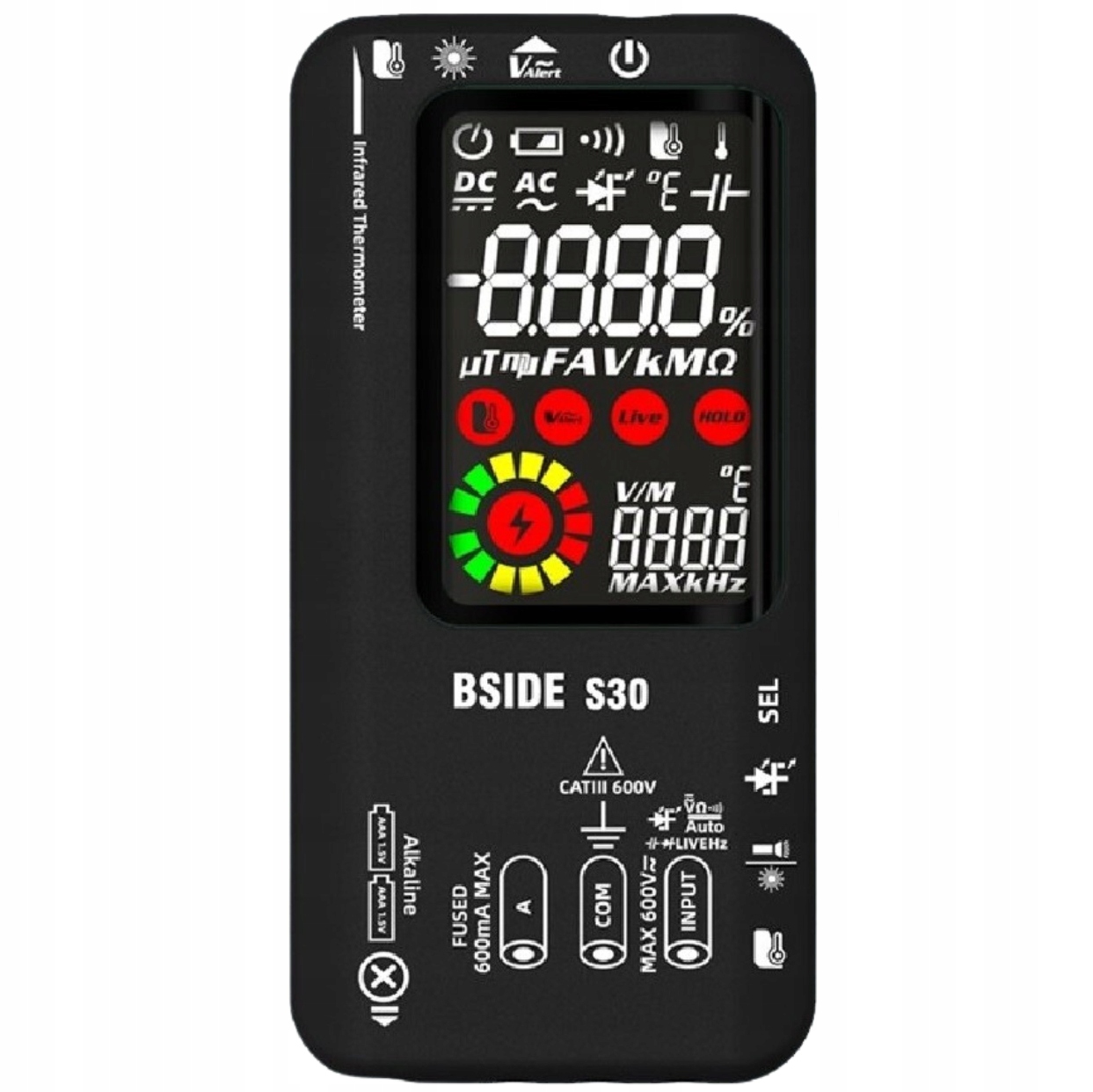

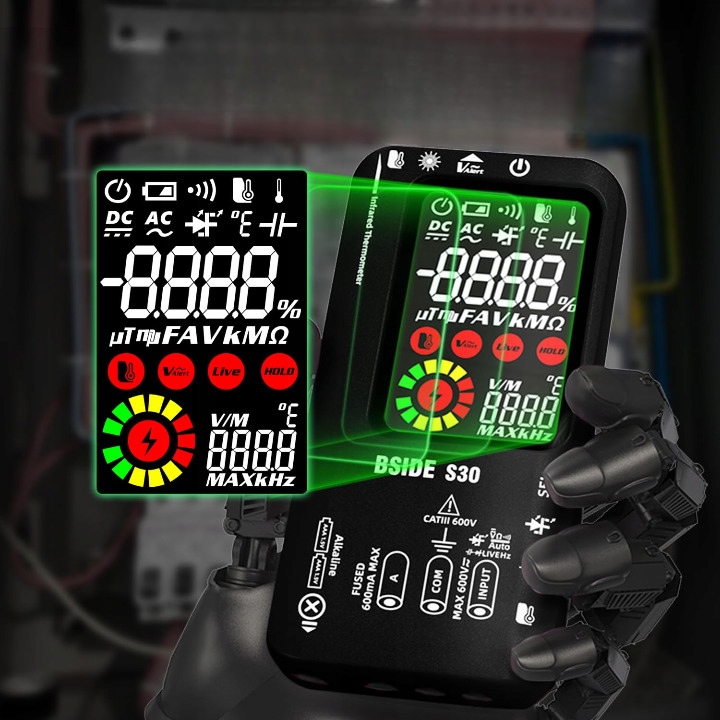

  The appearance of the Bside S30 is equipped with a large backlit LCD display screen, which can display measurement results.

  Compact size

  The multimeter has a small size and is very convenient to work with, making it easy to carry with you at any time.

• Specifications:

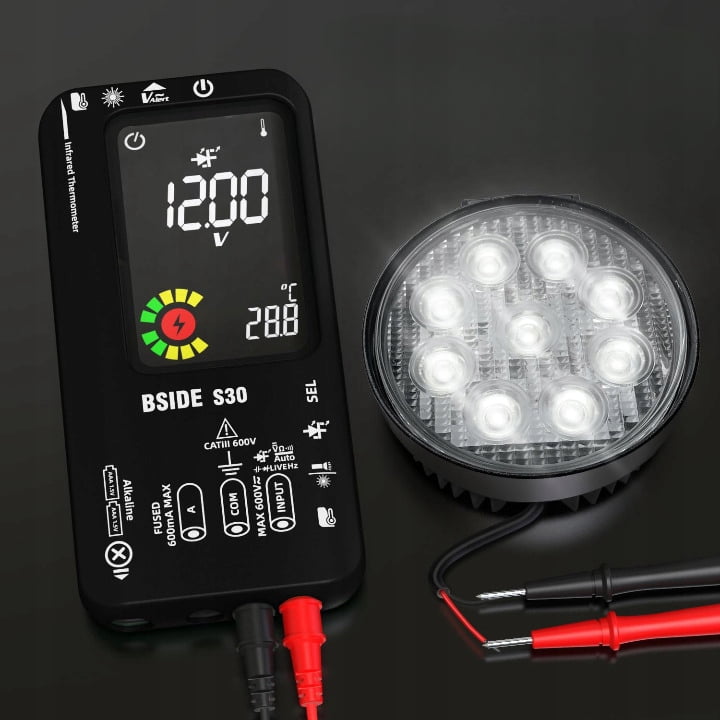

  DC voltage measurement: 0~620V (DC mode), 0.5~620V (automatic mode), 0.001 V,+/- (0.8%+3)

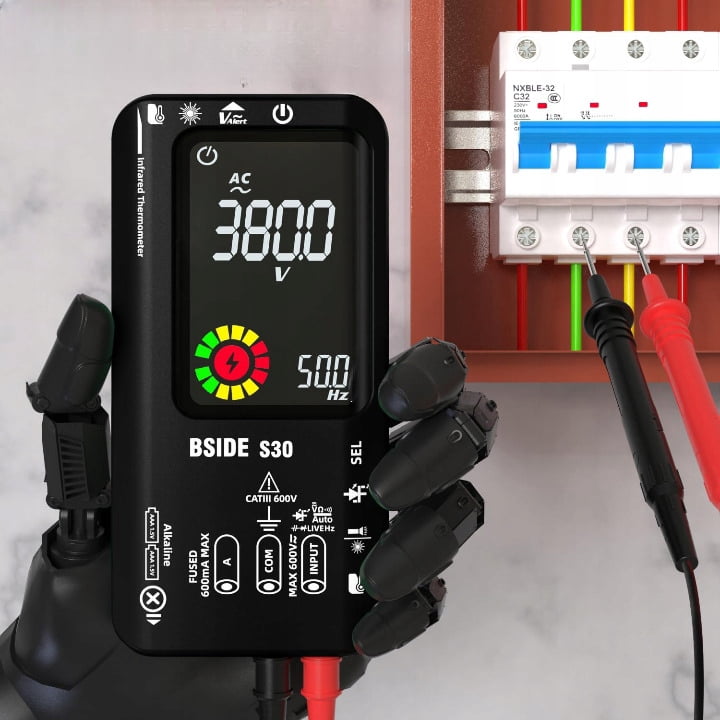

  AC voltage measurement: 0-620V (AC mode), 0.8-620V (automatic mode), 0.001V,+/- (1.2%+5)

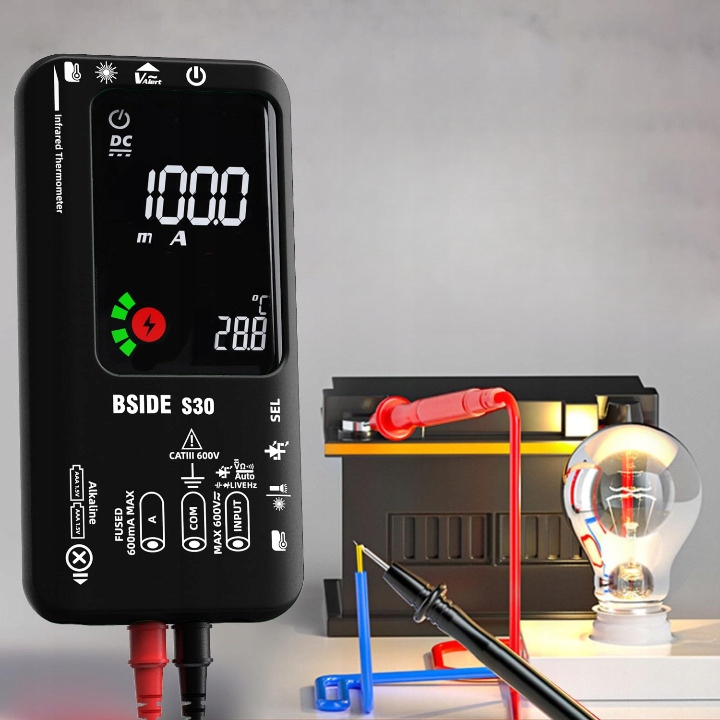

  DC current measurement: 1-610mA (DC), 0.1mA,+/- (1.5%+3)

  AC current measurement: 1-610mA (40-200Hz), 0.1mA,+/- (2%+3)

  Resistance measurement: 0 Ω~9.999M Ω (0.1 Ω,+/- (1.2%+3))

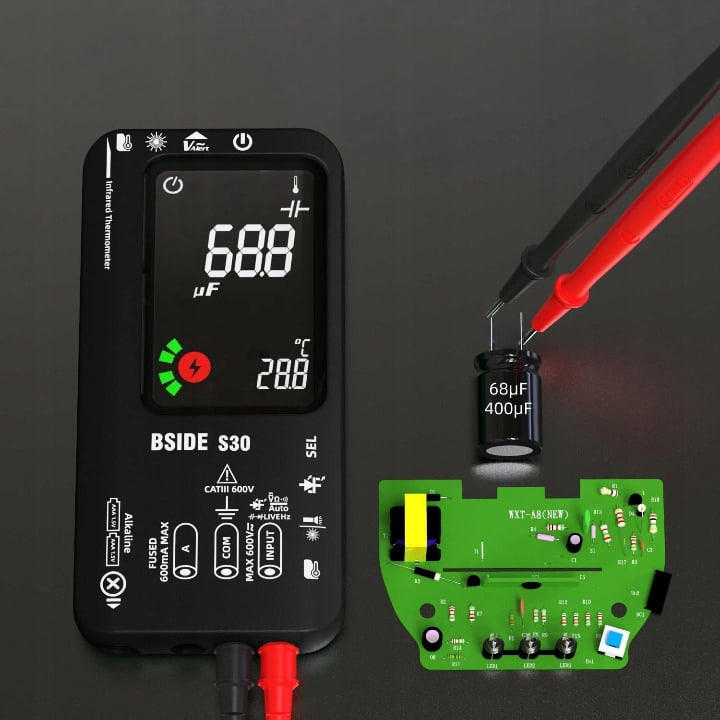

  Capacitance measurement: 0.5~999.9 μ F (0.1 μ F,+/- (3.5%+8)), 1000~9999 μ F (1 μ F,+/- (4.5%+10))

  Frequency measurement: 100-1000Hz (1Hz), 10-99.9Hz (0.1Hz),+/- (1.0%+5)

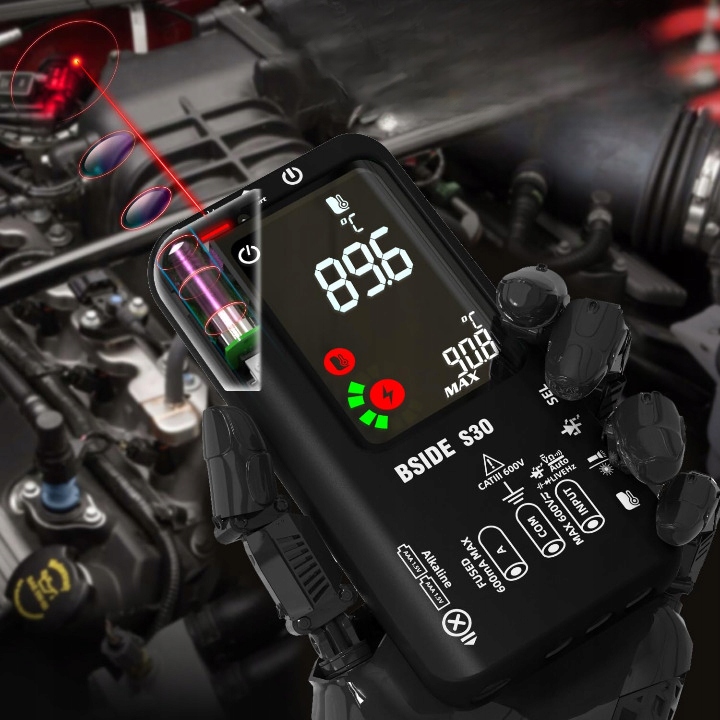

  Temperature measurement (infrared): -20 ° C~0 ° C (-4 ° F~32 ° F), 0 ° C~400 ° C (32 ° F~752 ° F)

  Temperature: 0-50 ℃

  Buzzer: 30 Ω

  Automatic shutdown: 5 minutes later.

  Maximum indication: 9999

  Material: Plastic

  Display: LCD color, backlight

  Power supply: 3.7V 1100mAh lithium-ion battery, 3 AAA alkaline batteries

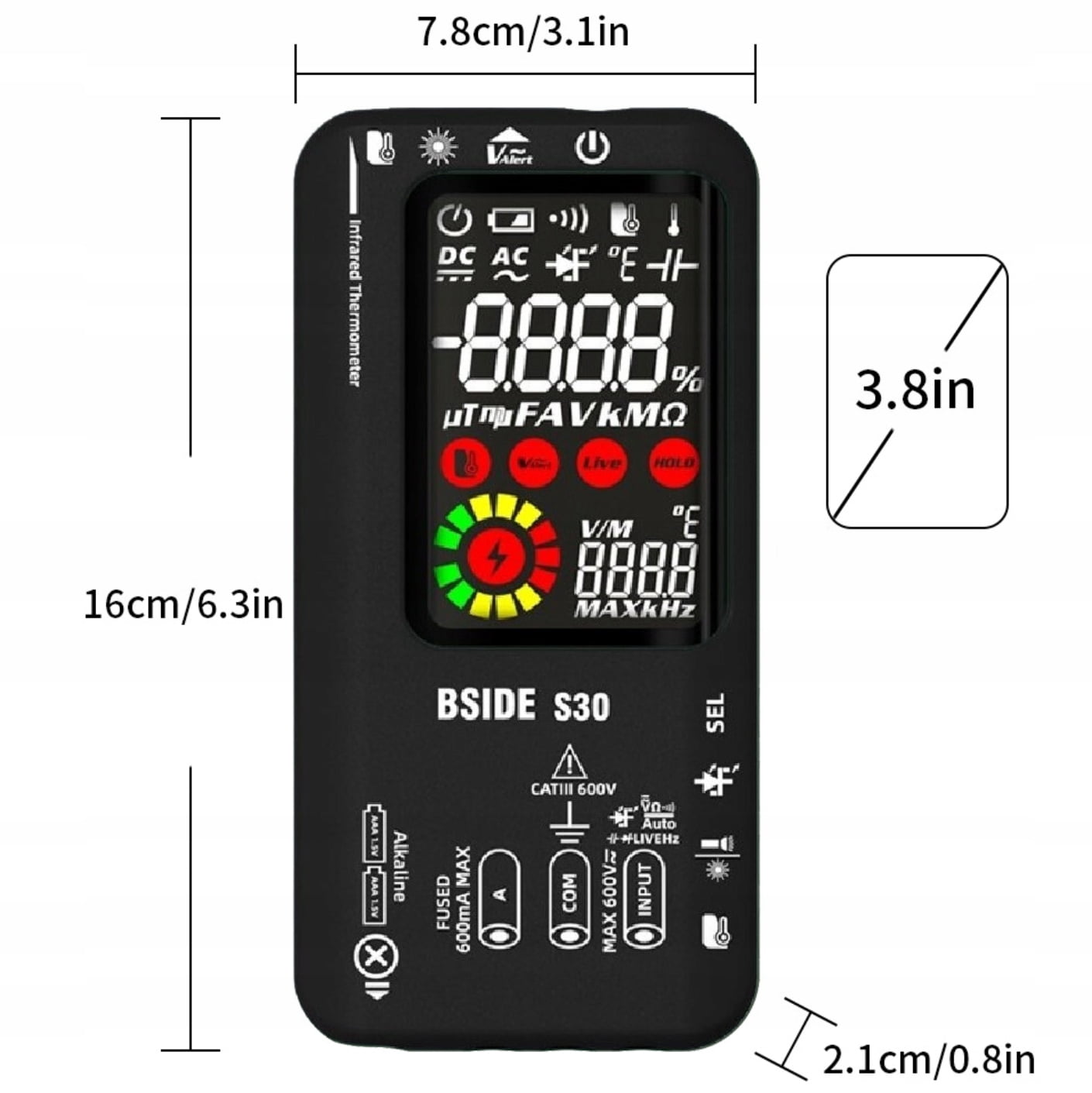

  Dimensions: 161 x 78 x 21 mm

  Weight: 245 grams

  Color: Black

• Packaging content:

  1x Bside S30 multimeter (black)

  1 USB cable

  1x test wire

  1 small bag

  1x screwdriver
